complete
cordless
solutions
Free your line & ditch the cable!
AIMCO's range of cordless tools are designed to meet diverse industrial needs.

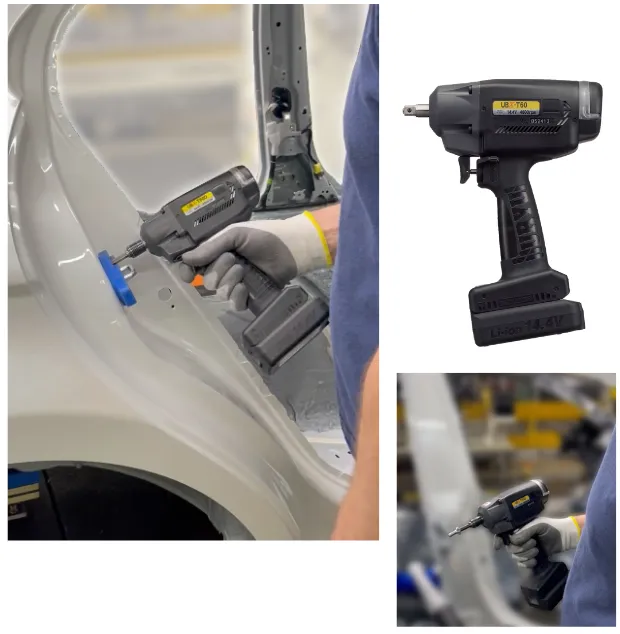

precision pulse
ubx-t series
This innovative pulse-unit design from URYU features a high pulse frequency and crisp tool shut-off for accurate delivery of torque.
The lighter tool weight has a near reaction free feel and minimal vibration.
Torque Range: 5 - 65 Nm (3.7 - 48 Ft-Lb)
Anvil: 1/4" QC - 3/8" Sq. Dr.
Weight: 2.8 - 3.1 Lb (1.3 - 1.4 Kg)
Pistol Configuration

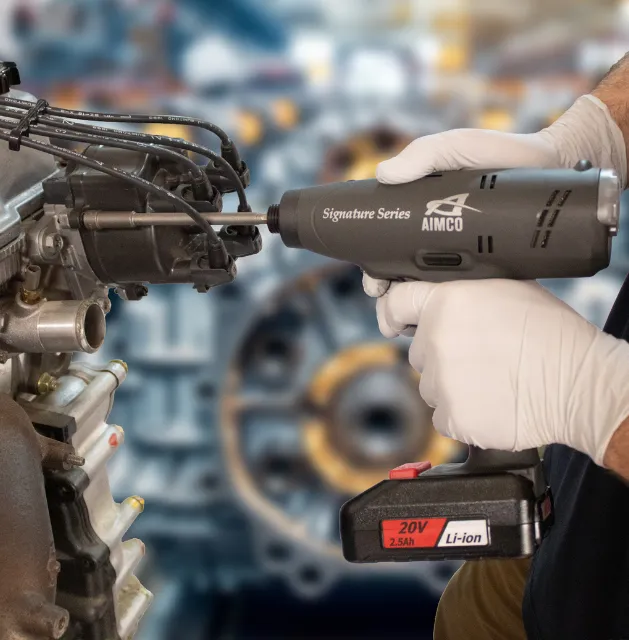

transducerized:

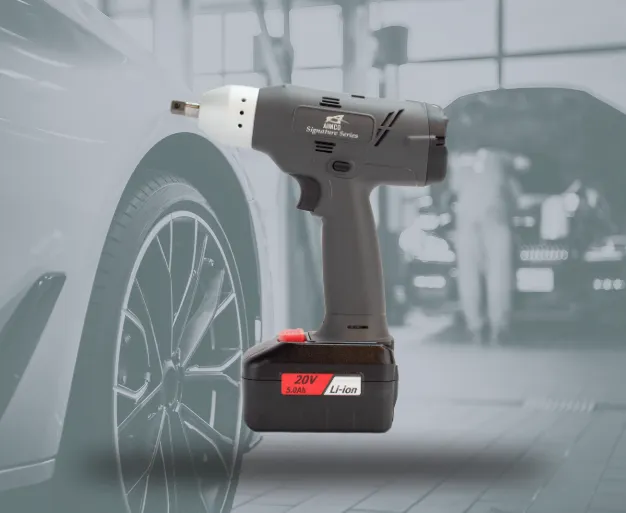

spt series
Our Signature Series SPT Cordless Tool features Transducer control for precise torque measurement and traceable results. The shock absorbing, ergonomic grip makes the SPT a favorite among Assembly Operators.
Advanced programming capabilities include an interface displaying realtime Torque/Angle and Poka-Yoke connection to Line Controls.
Torque Range: 3 - 60 Nm (2 - 44 Ft-Lb)
Anvil: 1/4" QC - 1/2" Sq. Dr.
Weight: 2.2 - 4.8 Lb (1 - 2.2 Kg)
Pistol & Angle Configurations
cordless power
for every assembly challenge

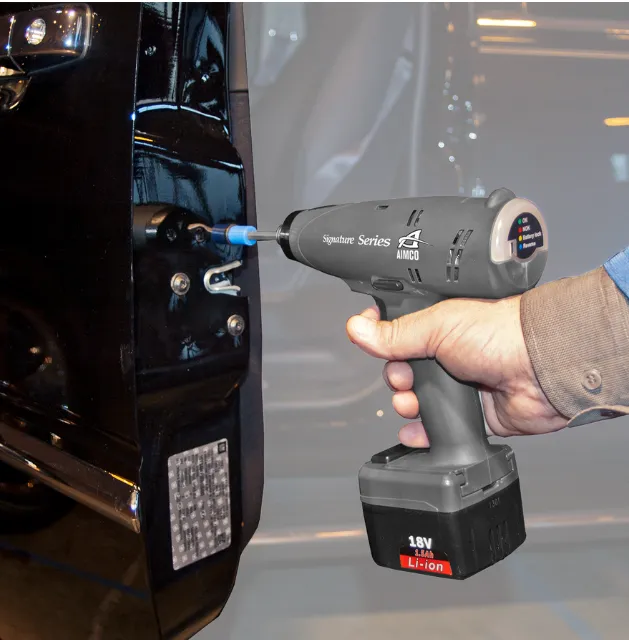

spc series: precision clutch
Highly reliable and accurate across multiple joint types. Features trigger repeat protection to avoid double hits on seated screws.
Fully customizable head options & LED light for working in dark areas
Mini USB port for connection to optional programmer (SPC-2PGM)
Li-Ion battery pack delivers longer run time
Torque Range: 1-100 Nm (0.6 - 74 Ft-Lb)
Anvil: 1/4" QC - 1/2" Sq. Dr.
Weight: 2.1 - 7.4 Lb (1 - 3.4 Kg)
Pistol, Angle, & Tubenut Configurations

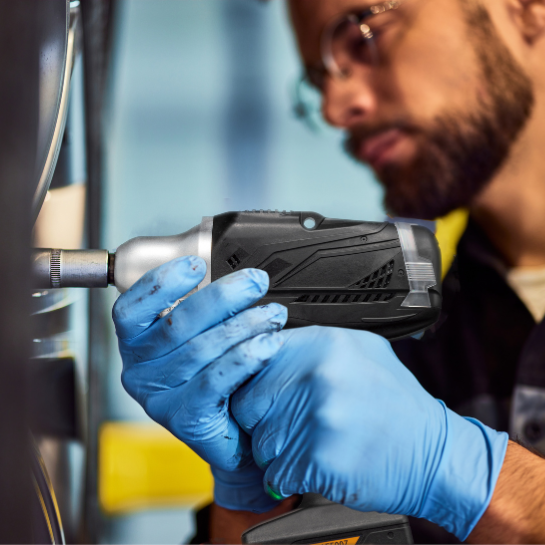

siw series: shut-off impact
Operates as a stand-alone impact wrench or impact wrench with programmable shut-off. Exceptionally repeatable for an impact wrench.
Brushless motor provides longer motor life and increased efficiency. Easy-to-read process information lights and LED light for work-area illumination.
Torque Range: 3 - 120 Nm 2 - 89 Ft-Lb)
Anvil: 1/4" QC - 1/2" Sq. Dr.
Weight: 2.2 - 2.9 Lb (1 - 1.3 Kg)
Pistol Configuration

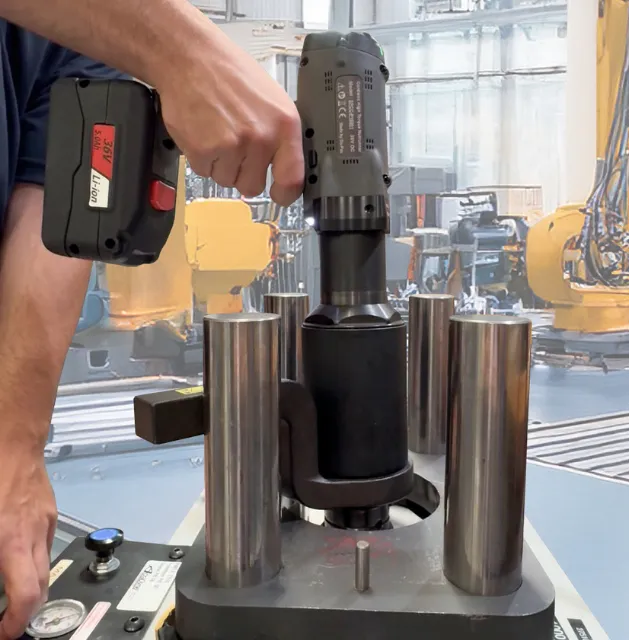

spcc series: high torque + speed
One of the fastest cordless high-torque speeds on the market (up to 700 RPM for 250 Nm model). Easy Torque Adjustment: Quick and accurate programming through the tool's user interface.
Seamless data download to a USB flash drive. Li-Ion battery pack delivers longer run time. For additional operator safety, dual-trigger models also available.
Torque Range: 50 - 2,500 Nm (37 - 1,844 Ft-Lb)
Anvil: 1/2" - 1" Sq. Dr.
Weight: 6.4 - 14.6 Lb (2.9 - 6.6 Kg)
Pistol Configuration
ubx-afz: transducerized pulse
Hydraulic Pulse Technology coupled with a PRECISE Transducerized Battery Tool. High pulse frequency and crisp tool shut off results in accurate delivery of torque and a near reaction-free feel.
Clear and concise data connectivity when integrated with the AcraDyne Gen IV Torque Controller.
Torque Range: 5 - 72 Nm (3.7 - 53 Ft-Lb)
Anvil: 3/8" - 1/2" Sq. Dr.
Weight: 3.4 - 4 Lb (1.5 - 1.8 Kg)
Pistol Configuration

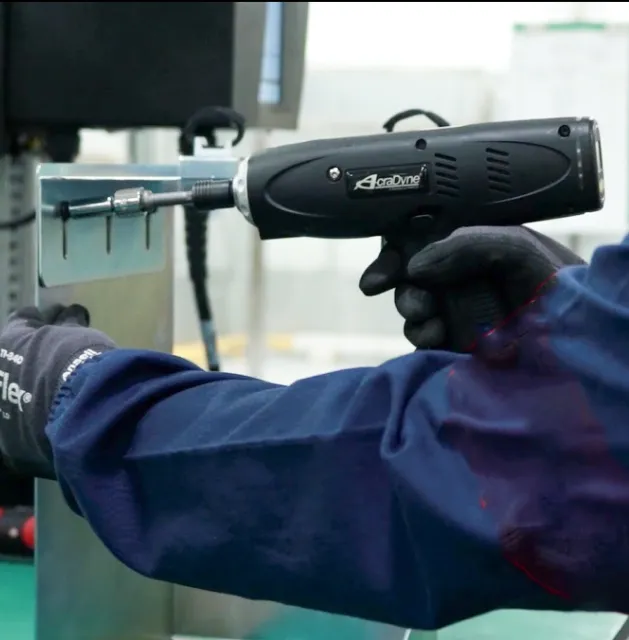

ab-mta/cta series: precision
AB-MTA series clutch shut off tool measures torque and reports angle.
AB-CTA series transducerized shut-off tool controls torque and angle.
License Free AcraDyne Tool Manager software for programmable torque, angle, RPM, time, and fastening direction. Tools can run stand alone or in conjunction with a Gen IV iBC Controller platform as a line interface.
Torque Range: 1 - 90 Nm (0.8 - 67 Ft-Lb)
Anvil: 1/4" QC - 1/2" Sq. Dr.
Weight: 2.5 - 6.4 Lb (1.2 - 2.9 Kg)
Pistol, Straight, Angle, & Tubenut Configurations

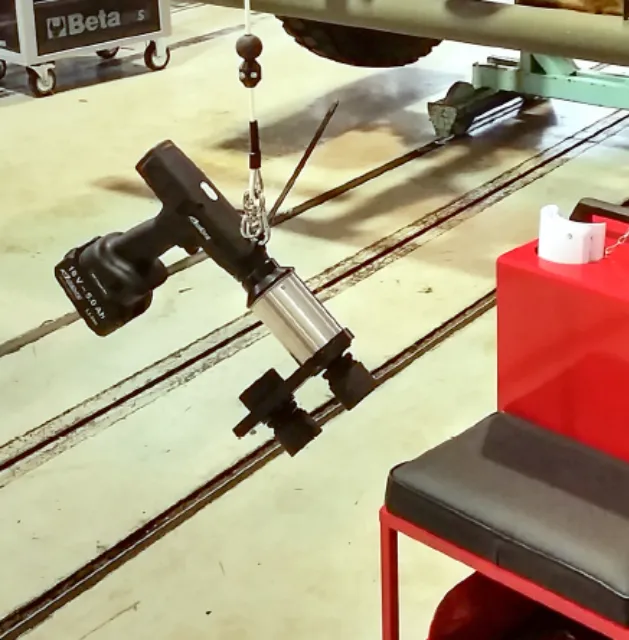

ultra torque: control & power
Ultra Torque AB-CTA Series is transducerized for precise delivery of torque and angle. Usable stand-alone or with AcraDyne iBC Series Controller for line controls and/or data integration with QMS Systems.
Extremely durable AcraDyne gearbox. Wide variety of strategies including torque, angle, torque plus turn, torque minus turn.
Torque Range: 185 - 3,688 Ft-Lb (250 - 5,000 Nm)
Anvil: 3/4" - 1" Sq. Dr.
Weight: 8 - 17.4 Lb (9.4 - 18.8 Kg)
Pistol & Angle Configurations
aimco's perq process
PERQ allows us to match your unique needs with assembly tool solutions for your processes.
The end result is manufacturing that runs efficieintly, produces high quality products, and does so at the best possible value.

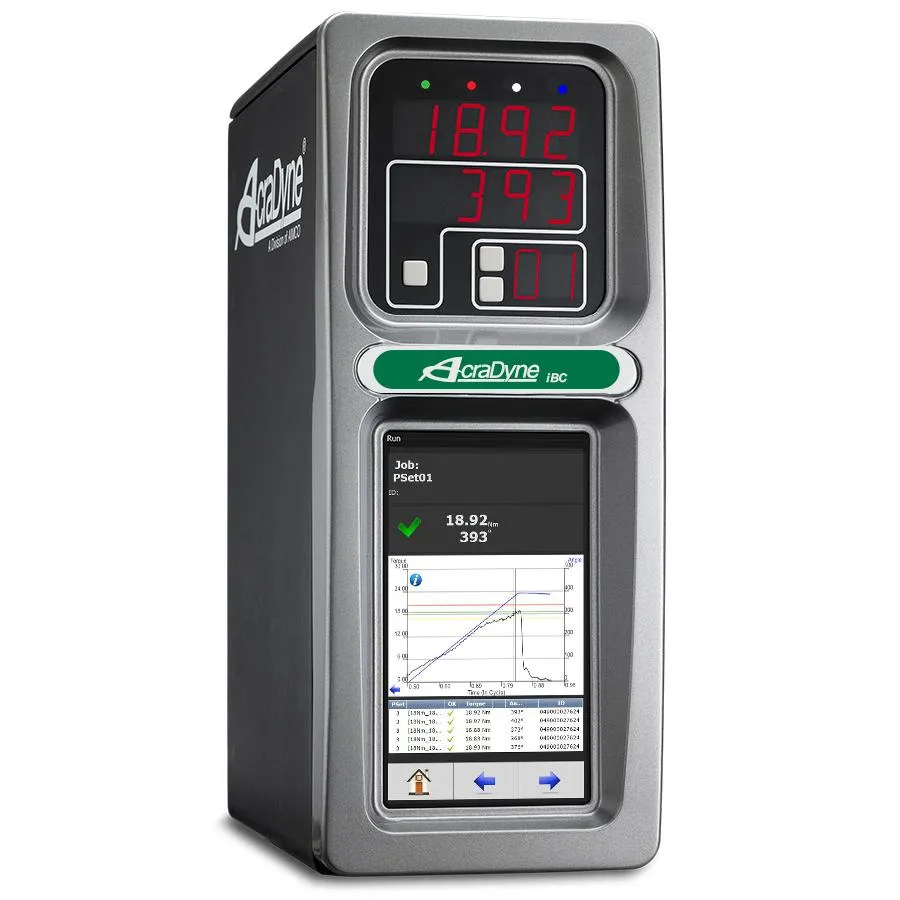

torque controller
The AcraDyne Gen IV Controller is compatible with the URYU UBX-T and UBX-AFZ Series tools as well as the AcraDyne AB-MTA & AB-CTA cordless tools.
Our Torque Controller features one common communication for global data collection, line controls, and Field bus platforms.
Controller software offered free of charge - no licensing fees!
